Evidenziare:
laser cladded extruder barrel
, twin screw extruder barrel
, wear resistant extruder barrel
Materiale: |
EPDM, HIPX260, CR12MOV, WR13, W6MO5CR4V2, WR30 |
Peso: |
50 kg |
Design a vite: |
a vite gemellare |
Allineare: |
Da 16,5 a 400 mm |
Tipo di struttura: |
Integrale / diviso / modulare |
Trattamento superficiale: |
Rivestimento nitrosso / laser / cromata / rivestito in lega |
Resistenza all'usura: |
Alto / medio / personalizzabile |
Personalizzazione: |
Sì, secondo disegno o campione |
Tipo di modello: |
20/30/35/36/40/50/52/53/58/60/65/75/85/92/95/110/125/135 |
Materiali a canna solida: |
In lega Hastelloy-C, 38 Crmoala, 304/316/316L in acciaio inossidabile |
Materiali composti diretti: |
ZT610 NI60 Basato+Cu, ZT615 NI60 Basato, ZT625 NI60 BASATO+Carburo di tungsteno, basato su cobalto h |
Materiali di rivestimento completi: |
Liner 38Crmoala, fodera in acciaio inossidabile 440C, fodera CR12Mov, liner SKD11/SKD61, liner DC53, |
Rivestimento in lega composta: |
Rivestimento basato su Ni60 S45C+ZT610 Ni60+Cu, S45C+ZT615 NI60 BASE LINER, SU45C+ZT625 NI60 BASAGGI |
Tipo di ricambi: |
barile |
Qualità: |
Alta resistenza all'usura e alla corrosione |

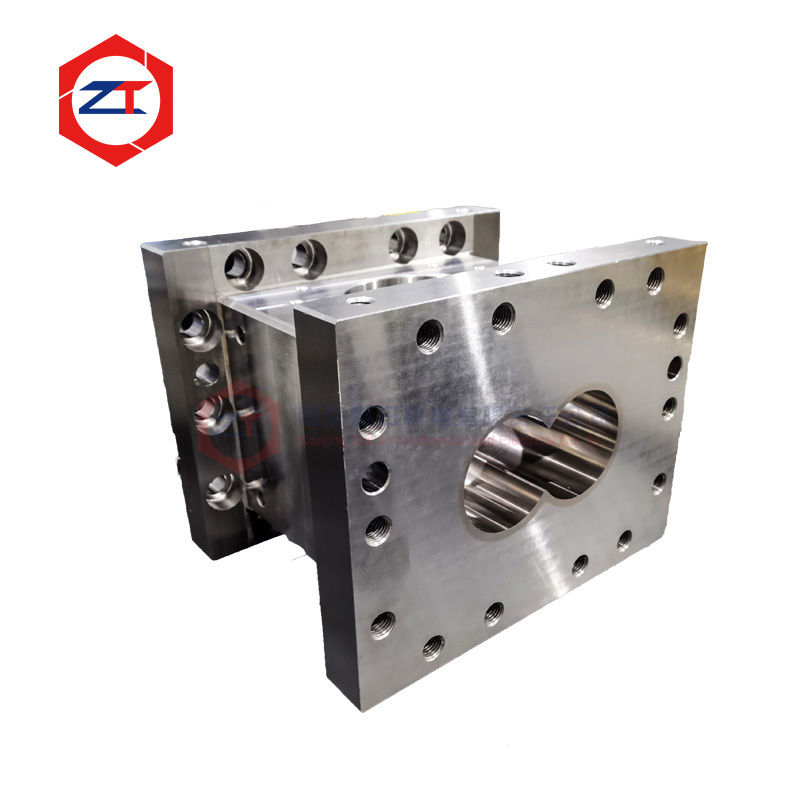

Laser Cladded Twin Screw Extruder Barrel for Wear Resistance
Laser Cladded Twin Screw Extruder Barrel
High-performance extruder barrel designed for wear-intensive plastic and rubber machinery applications, featuring laser cladding technology for enhanced durability.
Product Specifications
| Attribute |
Value |
| Material |
EPDM, Hipx260, Cr12MOV, Wr13, W6mo5cr4V2, Wr30 |
| Weight |
50 kg |
| Screw Design |
Twin screw |
| Application Machine |
Twin Screw Extruder |
| Range |
16.5 to 400mm |
| Structure Type |
Integral / Split / Modular |
| Surface Treatment |
Nitrided / Laser Cladding / Chrome Plated / Alloy Coated |
| Wear Resistance Level |
High / Medium / Customizable |
| Customization |
Available according to drawing or sample |
| After-Sales Service |
Engineers available to service machinery overseas |
Product Features
- Wide industry application: Used in plastics, rubber, chemicals, food, and new energy industries
- Modular design: Advanced "building block" configuration for flexible screw component combinations
- Cost-effective maintenance: Worn components can be partially replaced, reducing overall maintenance costs
- Advanced materials: Features proprietary ZT615 and ZT625 nickel-based alloys with tungsten carbide
- High precision: Manufactured to GB ISO 9001 standards for consistent quality
Barrel Types and Materials
Solid Barrel: Hastelloy-C Alloy, 38CrMoAla, 304/316/316L Stainless Steel
Direct Compound Barrel: ZT610 Ni60 Based+Cu, ZT615 Ni60 Based, ZT625 Ni60 Based+Tungsten carbide, HIP Cobalt Based+Tungsten carbide
Complete Liner Barrel: Multiple liner options including 38CrMoAla, 440C Stainless Steel, Cr12MoV, and specialized alloy liners
Product Gallery
Why Choose Zhitian Extruder Barrels?
With extensive experience in twin-screw extruder technology, we've developed innovative barrel designs that increase output and enhance service life. As a trusted OEM supplier to global extruder manufacturers, we combine advanced materials with precision engineering.
Our Advantages
- Extended service life through premium materials
- Custom material selection for wear and corrosion resistance
- Expert technical support for component design and combination
- Comprehensive quality control with traceability
- Versatile applications across multiple industries
Company Profile
Nanjing Zhitian specializes in manufacturing replacement parts for twin screw extruders with over 20 years of experience. Our capabilities include producing gearboxes, barrels, screw elements, and providing refurbishment services.
With strong technical expertise, advanced equipment, and strict quality control, our products are trusted by global brands in the extrusion industry.
Frequently Asked Questions
What products does your company offer?
We manufacture key components for twin-screw extruders including gearboxes, barrels, screw elements, and core shafts, serving various industries worldwide.
What are the features of your gearboxes?
Our gearboxes are designed for high efficiency, stability, and durability, using precision engineering and premium materials for optimal performance.
Which industries use your products?
Our components are used in plastics, rubber, synthetic fibers, food packaging, pharmaceuticals, and new energy applications like lithium battery production.
Do you offer customized solutions?
Yes, we provide personalized product designs and technical support to meet specific customer requirements.
