Evidenziare:
twin screw barrel for extruder
, high precision extruder barrel
, 16.5-400mm extruder screw barrel
Materiale: |
EPDM, HIPX260, CR12MOV, WR13, W6MO5CR4V2, WR30 |
Peso: |
50 kg |
Design a vite: |
a vite gemellare |
Intervallo di diametro: |
Da 16,5 a 400 mm |
Tipo di modello: |
20/30/35/36/40/50/52/53/58/60/65/75/85/92/95/110/125/135 |
Tipo di barile: |
Canna solida, canna composto diretto, barile di rivestimento completo, barile di rivestimento in leg |
Materiali a canna solida: |
In lega Hastelloy-C, 38 Crmoala, 304/316/316L in acciaio inossidabile |
Materiali composti diretti: |
ZT610 NI60 Basato+Cu, ZT615 NI60 Basato, ZT625 NI60 BASATO+Carburo di tungsteno, basato su cobalto h |
Materiali di rivestimento completi: |
Liner 38Crmoala, fodera in acciaio inossidabile 440C, fodera CR12Mov, liner SKD11/SKD61, liner DC53, |
Rivestimento in lega composta: |
Rivestimento basato su Ni60 S45C+ZT610 Ni60+Cu, S45C+ZT615 NI60 BASE LINER, SU45C+ZT625 NI60 BASAGGI |
Resistenza all'usura: |
Ad alta resistenza all'usura |
Resistenza alla corrosione: |
Alta resistenza alla corrosione |
Tipo di design: |
design a blocchi da costruzione |
Tipo di ricambi: |
barile |
Macchina dell'applicazione: |
EstrUder a vite gemella |

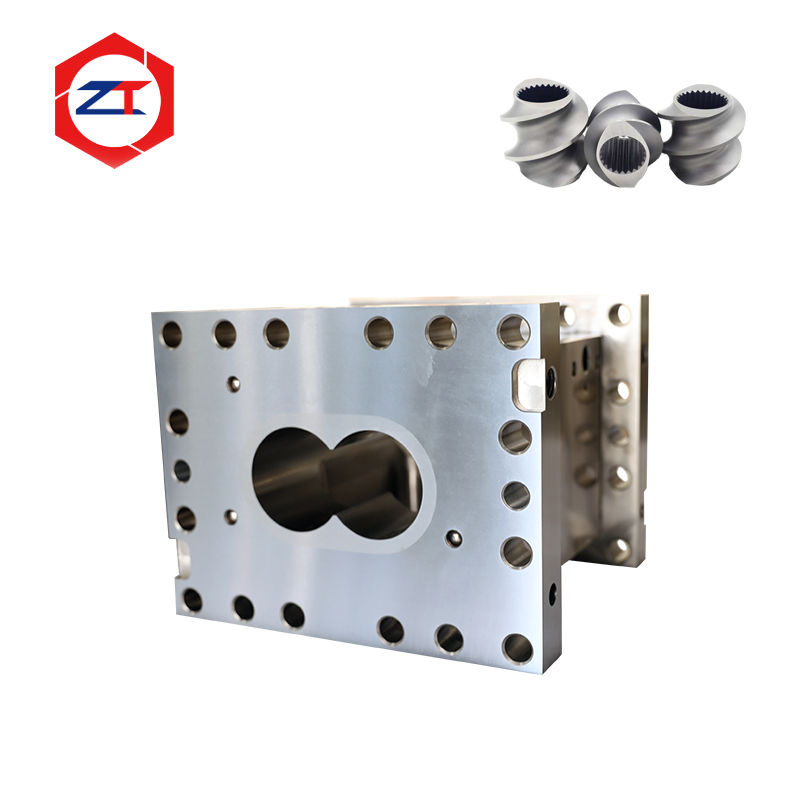

High Precision Twin Screw Barrel 16.5-400mm for Extruder Machine
OEM High Precision Twin Screw Elements - Top Choice for Plastic & Rubber Extrusion Machine Screw Barrel
Product Overview
Our twin screw extruder barrels are engineered for high wear-resistance and corrosion-resistance, making them ideal for demanding industrial applications in plastics, rubber, chemicals, food processing, and new energy sectors.
| Specification |
Details |
| Color |
Metal |
| Standard |
GB ISO 9001 |
| Model |
Type 20/30/35/36/40/50/52/53/58/60/65/75/85/92/95/110/125/135 |
| Brand |
Zhitian |
| Quality |
High wear-resistance and corrosion-resistance |
| Application |
For twin screw extruder |
Key Features
- Industry-leading performance: Our twin-screw extruder barrels are widely used across multiple industries with proven efficiency and stability.
- Advanced "building block" design: Allows flexible combination of screw components to meet specific material processing requirements.
- Reduced maintenance costs: Worn components can be partially replaced, eliminating the need for complete unit replacement.
- Proprietary materials: Including ZT615 nickel-based alloy and ZT625 nickel-based alloy tungsten carbide for superior wear and corrosion resistance.
Barrel Types & Materials
| Barrel Type |
Materials |
| Solid Barrel |
Hastelloy-C Alloy, 38CrMoAla, 304/316/316L Stainless Steel |
| Direct Compound Barrel |
ZT610 Ni60 Based+Cu, ZT615 Ni60 Based, ZT625 Ni60 Based+Tungsten carbide, HIP Cobalt Based+Tungsten carbide |
| Complete Liner Barrel |
38CrMoAla Liner, 440C Stainless Steel Liner, Cr12MoV Liner, SKD11/SKD61 Liner, DC53 Liner, W6Mo5Cr4V2 Liner, ZTCr26 Liner, SAM26/WR13 Liner, CPM10V/WR5 Liner, ZT610 Ni60 Based Liner+Cu, ZT615 Ni60 Based Liner, ZT625 Ni60 Based Liner+Tungsten carbide, HIP Cobalt Based Liner+Tungsten carbide |
| Compound Alloy Liner Barrel |
S45C+ZT610 Ni60 Based Liner+Cu, S45C+ZT615 Ni60 Based Liner, S45C+ZT625 Ni60 Based Liner+Tungsten carbide, S45C+HIP Cobalt Based Liner+Tungsten carbide |
Product Showcase
Why Choose Zhitian's Extruder Barrel?
With extensive experience in twin-screw extruder screw barrels, we've developed innovative designs that significantly increase output and enhance service life. We provide OEM services for leading extruder manufacturers worldwide, establishing ourselves as one of China's premier extruder barrel manufacturers.
Our Advantages
- Extended service life through premium materials
- Custom material selection for wear and corrosion resistance
- Professional technical support for design and component combinations
- Comprehensive quality control with traceability for every product
- Versatile applications across multiple material processing requirements
Company Profile
Nanjing Zhitian specializes in manufacturing replacement parts for twin screw extruders with over 20 years of experience. We produce gearboxes, barrels, and screw elements for twin screw extruders, along with refurbishment services.
Our company combines strong technical expertise, excellent processing equipment, advanced production technology, strict inspection systems, and comprehensive after-sales service, earning praise from customers worldwide.
Global Excellence in Extruder Components
As a leading global manufacturer of twin screw extruder components, we provide:
- High-efficiency, stable, and durable gearboxes
- Precision-engineered barrels for optimal equipment performance
- Advanced screw elements and core shafts for precise material processing
- Custom solutions for diverse industrial applications
Frequently Asked Questions
Q1: What products and services does your company primarily offer?
A: We manufacture key components for twin-screw extruders including gearboxes, barrels, screw elements, and core shafts, renowned for excellent quality and professional service.
Q2: What are the features of your twin-screw extruder gearboxes?
A: Our gearboxes feature high efficiency, stability, and durability, with precision design and high-quality materials for outstanding industrial performance.
Q3: In which industries are your products widely used?
A: Our products serve plastics, rubber, synthetic fibers, food packaging, pharmaceuticals, and emerging fields like lithium battery production.
Q4: How can we obtain customized solutions?
A: We provide personalized designs and technical support. Contact our customer service team for detailed customization options.
Q5: How can we establish a partnership with your company?
A: We welcome long-term partnerships. Contact our customer service team to discuss your requirements.
Q6: What is your company's guarantee for product quality?
A: We maintain rigorous quality control processes to ensure products meet the highest standards and exceed customer expectations.
